THE AERONAUTICAL ENGINE WITH THE BEST POWER / WEIGHT RATIO
Motor can be ordered with clockwise or anticlockwise rotation

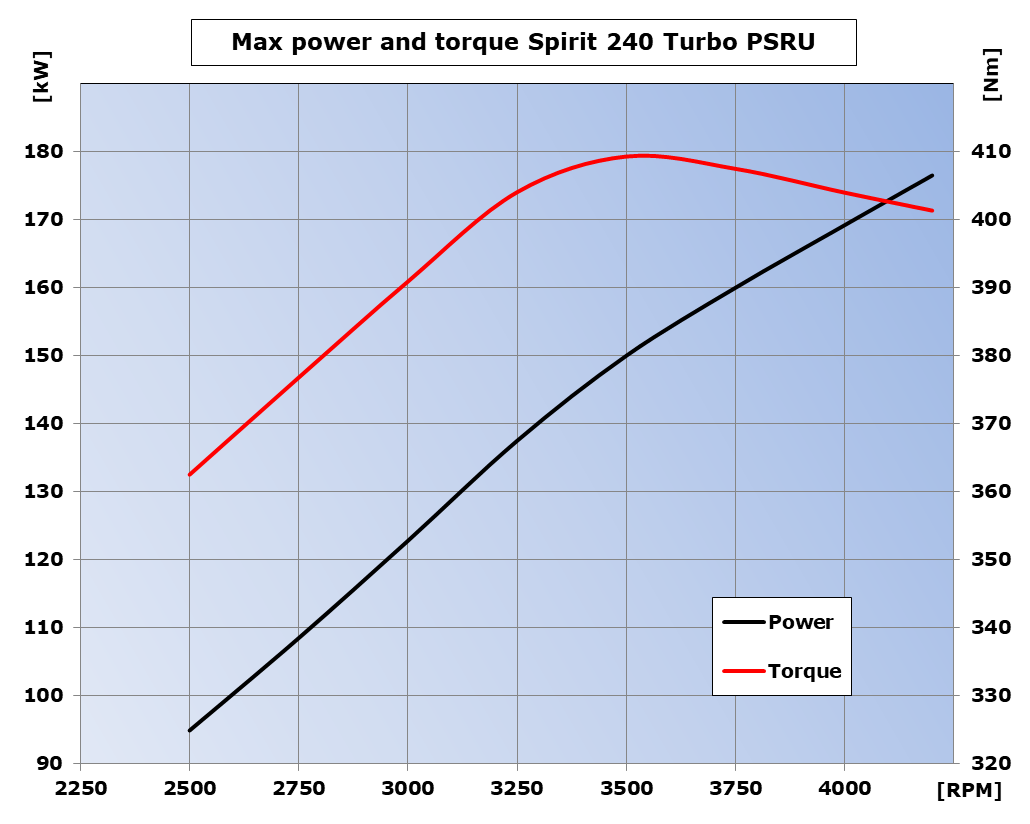

| MAX POWER | 179 (240) @4200rpm |
| [kW (Hp)] | |
| MAX TORQUE | 409 (301.5) @3550rpm |
| [Nm (lb-ft)] | |
| POWER/WEIGHT RATIO | 2.38 (1.08) |
| [Hp/Kg (Hp/lb)] |
- Type: 4-cylinder boxer
- Fuel: Mo.GAS min. AKI 90, R.O.N. 95, M.O.N. 85, LL100
- Cooling System: liquid cooled with mechanical pump
- Engine Control: double injection and ignition system
- T.B.O. [h]: 1500
0 Hp
Power
0 Kg
Weight
0 Kg/h
Consumption
Engine Data
| Model/Code | Spirit 240 Turbo PSRU / W031 (left rotation) – W032 (right rotation) |
| Type | 4 cylinder boxer – 4 stroke fuel (Otto cycle) |
| Displacement [cm3 (in3)] | 2545 (155) |
| Weight [Kg (lbs)] | 101 (222.6) dry |
| Dimension L x W x H [mm (in)] | 705 x 749 x 600 (27.76 x 29.49 x 23.62) |
| Stroke X Bore [mm (in)] | 81 x 100 (3.18 x 3.93) |
| Compression Rate | 8.5 ÷ 1 |
| Critical Altitude [ft] | 16000 |
| Max Overpressure Ratio | 1.69 |
| Fuel | Mo.GAS min. AKI 90, R.O.N. 95, M.O.N. 85, LL100 |
| Cooling System | Liquid with mechanical pump |
| Lubrication | Semi-dry sump, pressure oil feed assisted with internal pump |
| Timing System | 2 valves per cylinder with S.O.H.C. (Single Over Head Camshaft) |
| Timing Driving System | Gear + chain with automatic chain tensioner |
| Pre-installed Accessories (included in the weight) | Engine wiring loom, voltage regulator, start relay, dampers, ignition coils, cooling expansion tank, intercooler with hoses |
Transmission
| Type | Gearbox with helical gear (separate lubrication) |
| Transmission Ratio | 1 ÷ 1.732 |
| Max Propeller Speed [rpm] | 2450 |
| Damper | Elasto-dissipative with Active Damping Control (A.D.C.) |
| Optional | Integrated constant speed hydraulic governor |
ELECTRIC DATA
| Generator | Permanent magnet, oil cooled, 260W (12.5V-21A) |
| Optional Generator | 750W (12.5V-60A); 2250W (12.5V-90A); 2250W (25V-180A) |
| Starter | Electric 0.65kW with anti-kickback clutch |
| F.R.I.S. (Full Rendundancy Injection System) |
ECU with dual injection and ignition; altitude and temperature compensation; Limp Home strategy |
| CAN Data Transmission | CAN Aerospace protocol |

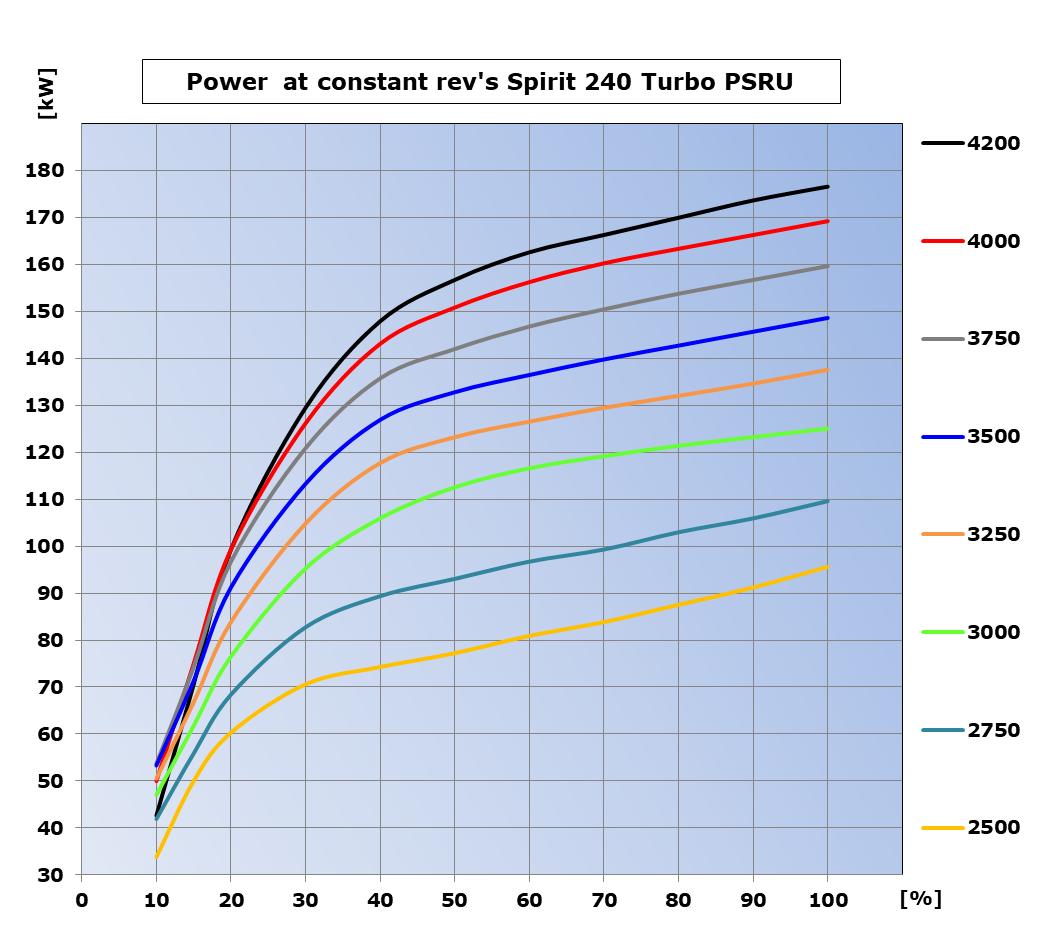

| Max Power [kW (Hp)] | 179 (240) @ 4200 rpm |
| Max Torque [Nm (lb-ft)] | 409 (301.5) @ 3550 rpm |
| Max Continuous Power [kW (Hp)] | 140 (190) |
| Max Engine Speed [rpm] | 4250 |
| Power/Weight [Hp/Kg (Hp/lb)] | 2.38 (1.08) |

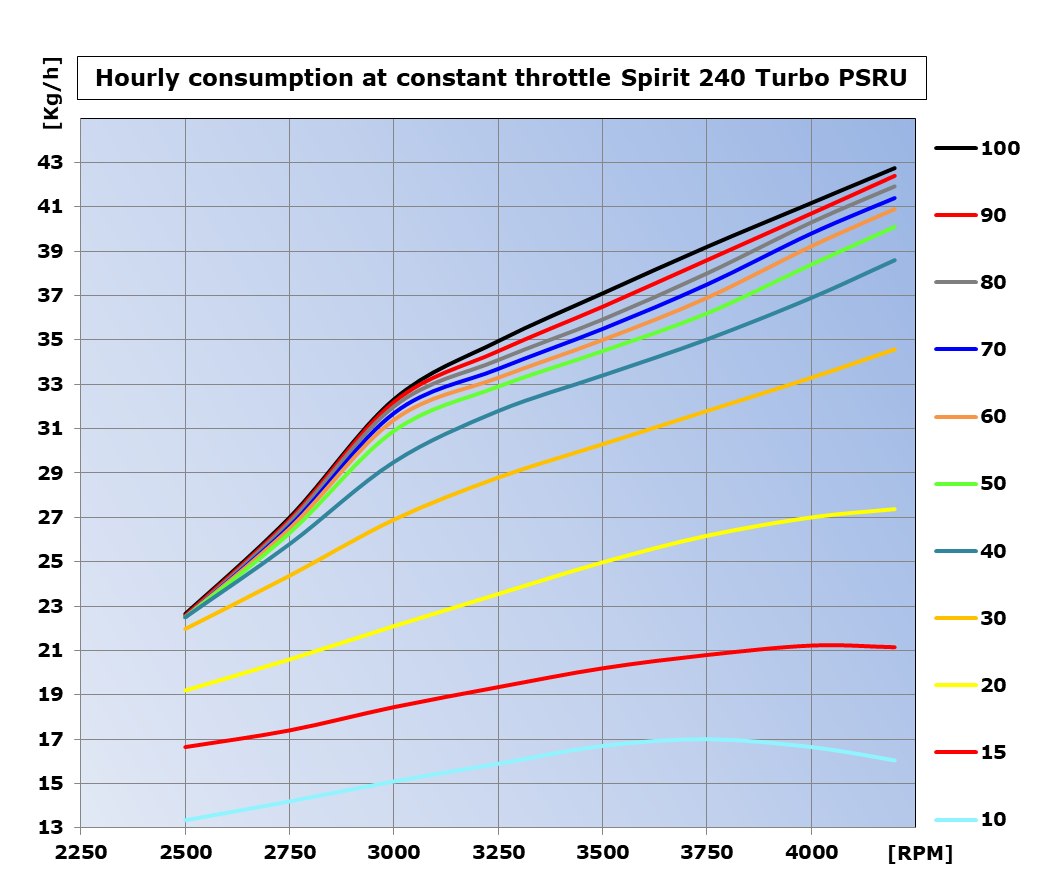

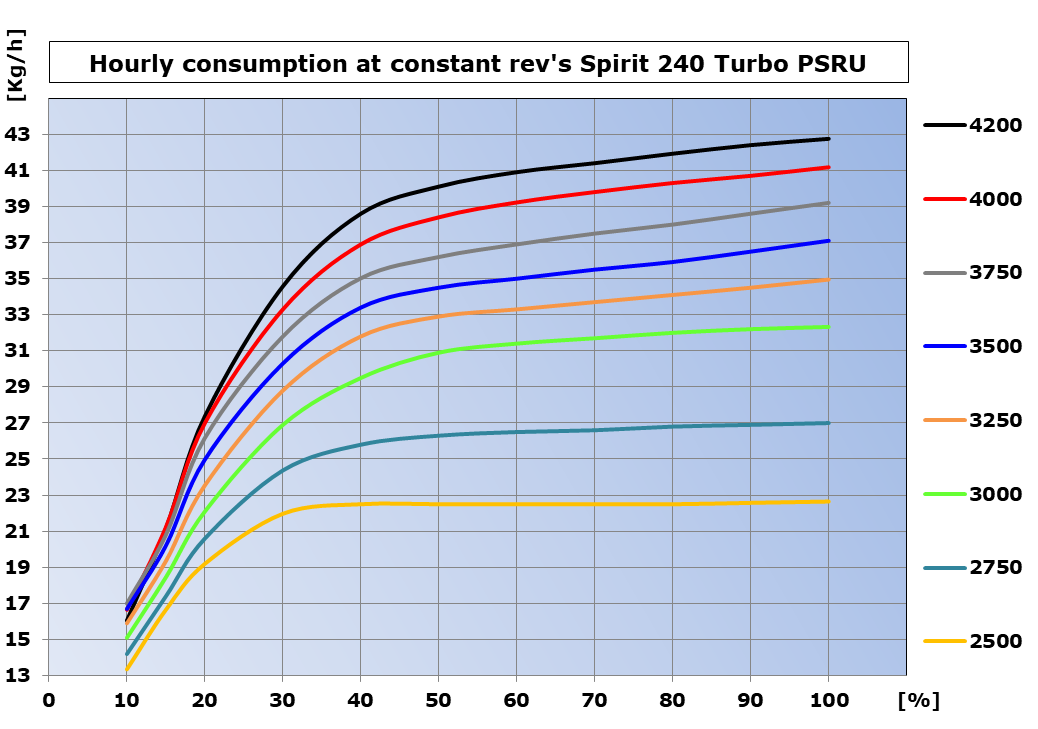

| Fuel Cons. [Kg/h (lb/h)] | 14.5 (31.9) @ 75 Hp |
| TBO [h] | 1500 |
| Weight [Kg (lb)] | 101 (222.6) dry |
| Dimension L x W x H [mm (in)] | 705 x 749 x 600 (27.76 x 29.49 x 23.62) |
